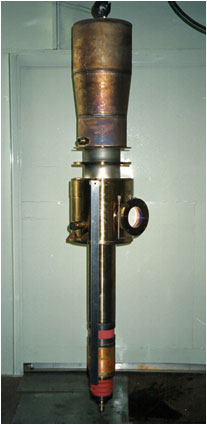

Megawatt gyrotrons for plasma fusion
|
| |
Frequency, GHz |
170 |
140/105
(dual frequency) |
84 (or 82.6) |
110 |
Output power, kW |
1000 |
950/800 |
200 |
800 |
Efficiency, % |
52 |
50/40 |
55 |
40 |
Pulse duration, sec |
200 |
10 |
1000 |
3 |
Voltage, kV |
47+28
(depressed collector) |
|
45+20
(depressed collector) |
80 |
|
 |
These free running gyrotron oscillators are used at Russian, European, American, and Japanese scientific laboratories for plasma research. |
|
